AIRTEC Motorsport Intercooler Upgrade for Audi S3 1.8T (8L) Quattro
Finished In Pro-Series Satin Black or Silver
Removes restrictive twin Intercooler set up for high flow single pass 60mm core design
Rolling Road Tested ’12bhp increase in BHP’ on a stage1 car (only remap installed) Tested at AMD Tuning Essex
AIRTEC Part No: ATINTVAG10
Technical Data
A great upgrade for your modified S3, perfect for fast road and track use, as fitted to AIRTEC demo car.
After much research, development and testing at AIRTEC HQ, our intercooler upgrade for the Audi S3 1.8T (8L) has been added to our ever-growing range of products. Built using a high flow core to offer increased cooling efficiency and performance, we take pride ensuring all of our kits are finished to our usual high standard and premium quality. Designed in the UK and offered at a reasonable price.
TESTED
AmD rolling road tested results – Stage 1 remap (higher stages of tune will see even bigger gains)
Standard Intercooler:
Temperature into intercooler: 128 degrees
Temperature out of intercooler: 49 degrees
AIRTEC Motorsport Intercooler:
Temperature into intercooler: 126 degrees
Temperature out of intercooler: 23 degrees (giving a 12bhp gain in mid-range).
Dimensions:
Width: 680mm
Height: 340mm
Depth: 60mm
Features:

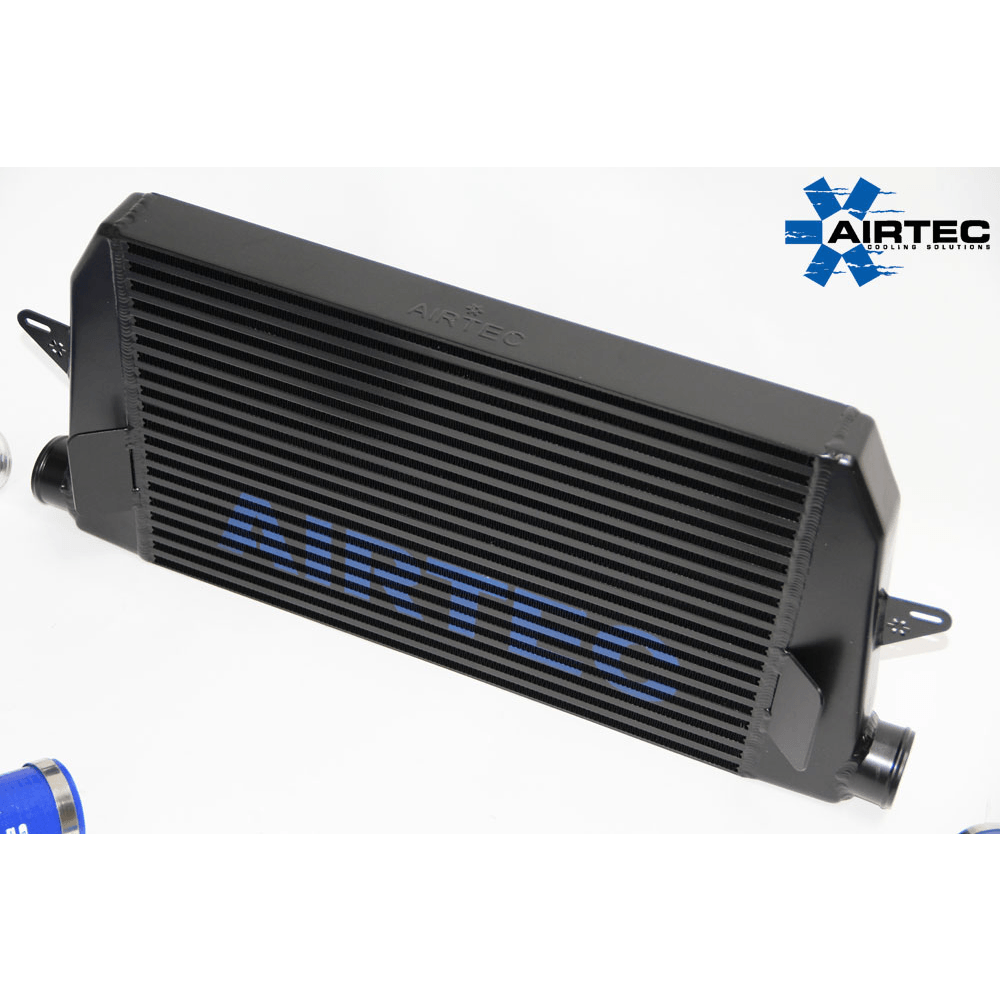

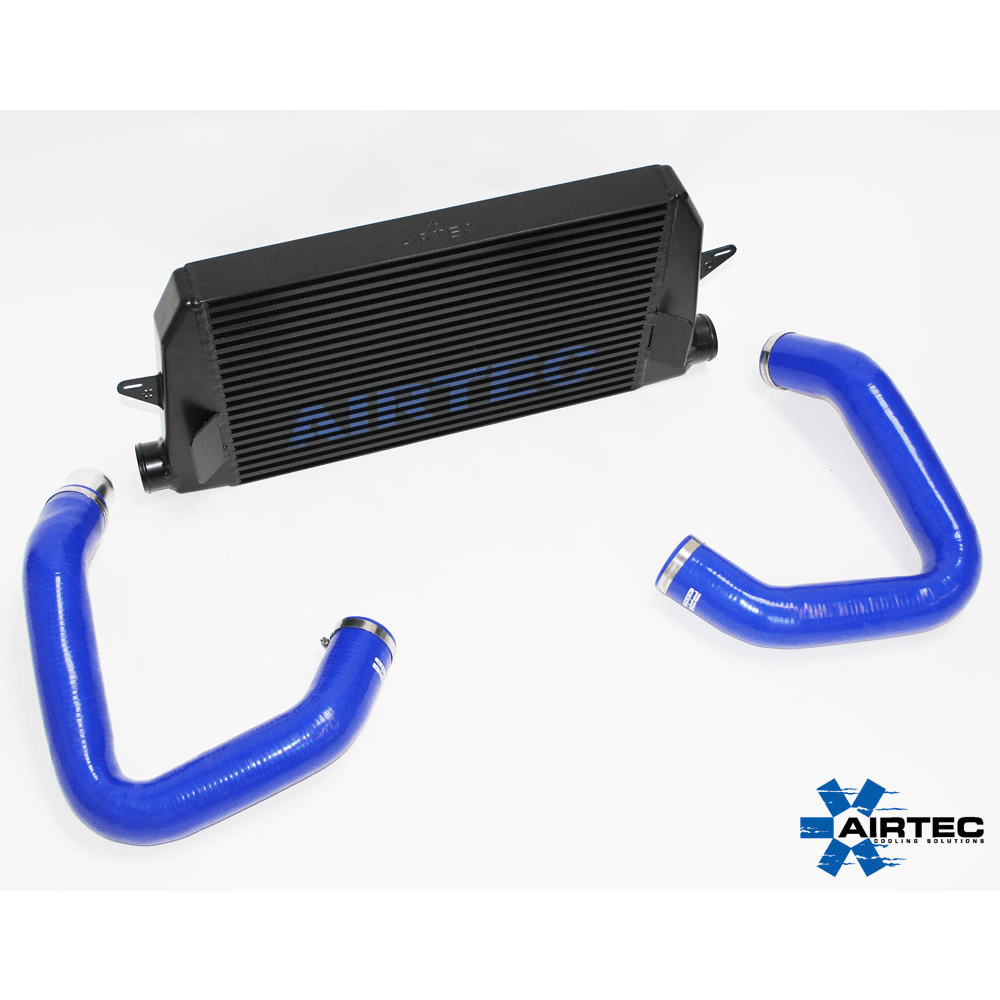

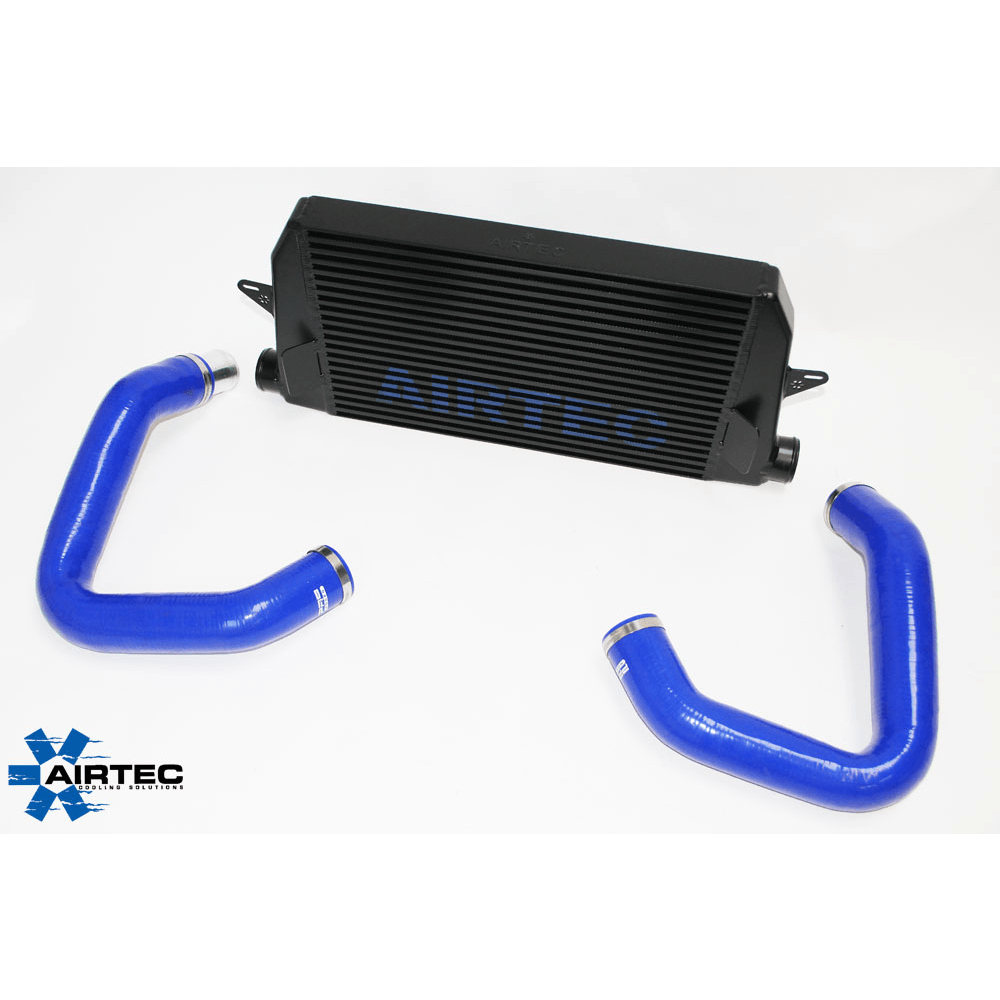

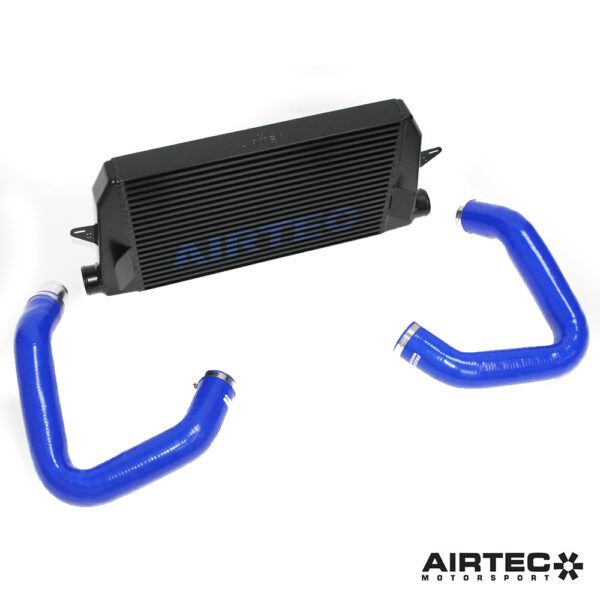

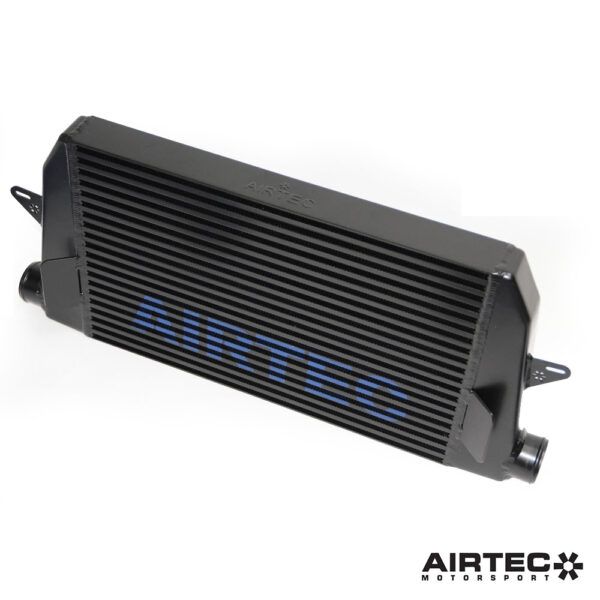

- 60mm core intercooler with flowed cast end tanks, this means less welding and a stronger Intercooler
- High quality 4/5ply silicone hoses with no joins which means better flow inside the pipe work, finished with stainless jubilee clips
- Stainless horn and ambient temperature support brackets with AIRTEC logos
- Retains original crash bar (requires minor cutting, detailed in instructions)
- Retains original fog lights
- Requires minor cutting around fog light area of bumper, fog light grilles remain un-cut and detailed in instructions
- Unbeatable value for money
- Fitting instructions and all required fixings
- Proven power increases for fast road & track
- Available in Natural Silver or Pro-Series Black finishes
- AIRTEC 3 year unlimited mileage warranty
- Fitting will take 2-3 hours depending on mechanical skill
- Fits all 1.8T S3 models (8L chassis)
Registered Design Right Number: 6023255
AIRTEC part no: ATINTVAG10
