AIRTEC Motorsport Intercooler Upgrade for Ford Ranger 2.2 & 3.2 TDCI

Technical Data

As part of our expanding Ford Ranger product range, AIRTEC Motorsport is proud to launch our intercooler upgrade to offer increased performance through reduced charge temperatures in comparison to the original intercooler. This is particularly important to remapped examples.

Our solution to increasing the intercooler’s size and performance within the confines behind the grille assembly is based upon a full size, single-pass core design, that’s wider, taller and deeper than the original. This offers a massive 174% increase in capacity compared to original intercooler and a 74% increase in frontal area, which allows it to make the most of the air flow provided.

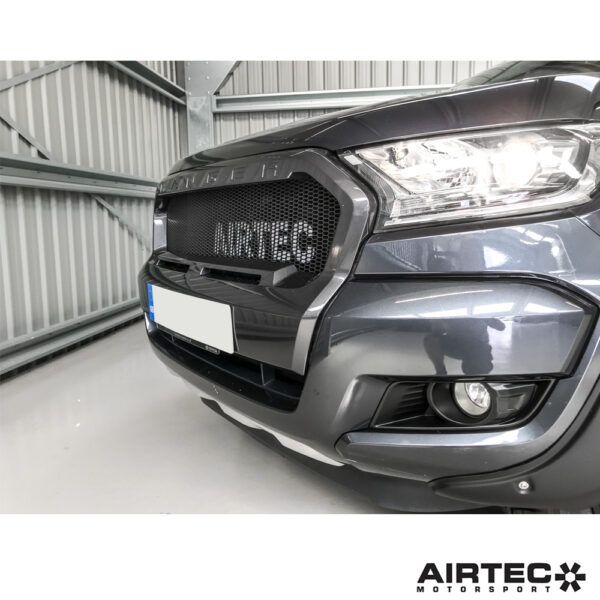

Despite this improvement, the kit fits neatly behind the original grille and requires no trimming or cutting, and can be reverted back to standard with no issues. The comprehensive fitting kit includes all the correct fixtures and fittings, and step-by-step instructions.

The intercooler is available in a Pro-Series Black finish (with or without the AIRTEC logo).

It’s proven cooling efficiency and straight forward fitment makes it an essential modification for all modified Ranger models.

Dimensions:
OEM Intercooler
Width: 670mm
Height: 210mm
Depth: 40mm
Capacity: 5.6 litres
Front Area: 1,407cm²

AIRTEC Motorsport Intercooler
Width: 700mm
Height: 350mm
Depth: 63mm
Capacity: 15.4 litres
Front Area: 2,450cm²


Features:

• 174% increase in capacity compared to original intercooler
• 74% increase in frontal area compared to original intercooler
• Cast end tanks to optimise air flow
• Bar and plate core
• Comes complete with full fitting instructions
• Proven power increases and cooling efficiency
• Available in satin black

Registered Design Right: Application Pending

AIRTEC Part No: ATINTFO57
