AIRTEC Motorsport Intercooler and Radiator Combination for Mk1 and Mk2 Escort
The kit includes a 50mm core intercooler and 42mm core radiator as well as well as two Italian made slim line fans. Ideally suited to a YB conversion, but can be made to work with any turbocharged engine and the kit itself can be made to fit other classic models.
Technical Data
Cool that turbocharged classic with AIRTEC Motorsport.
A neat cooling solution suitable for turbocharged Mk1 and Mk2 Escorts that require an intercooler and uprated radiator package.

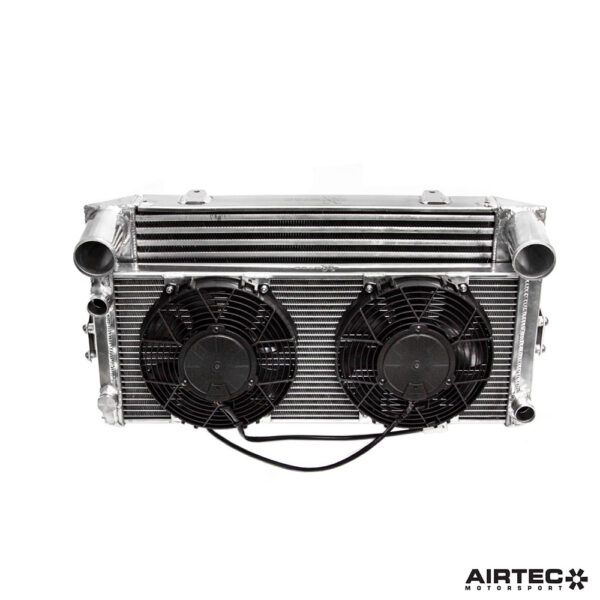

The kit includes a 50mm core intercooler and 42mm core radiator as well as well as two Italian made slim line fans.
Ideally suited to a YB conversion, but can be made to work with any turbocharged engine and the kit itself can be made to fit other classic models.
Warranty: 1 year for radiators and 3 years for intercoolers.
Dimensions:

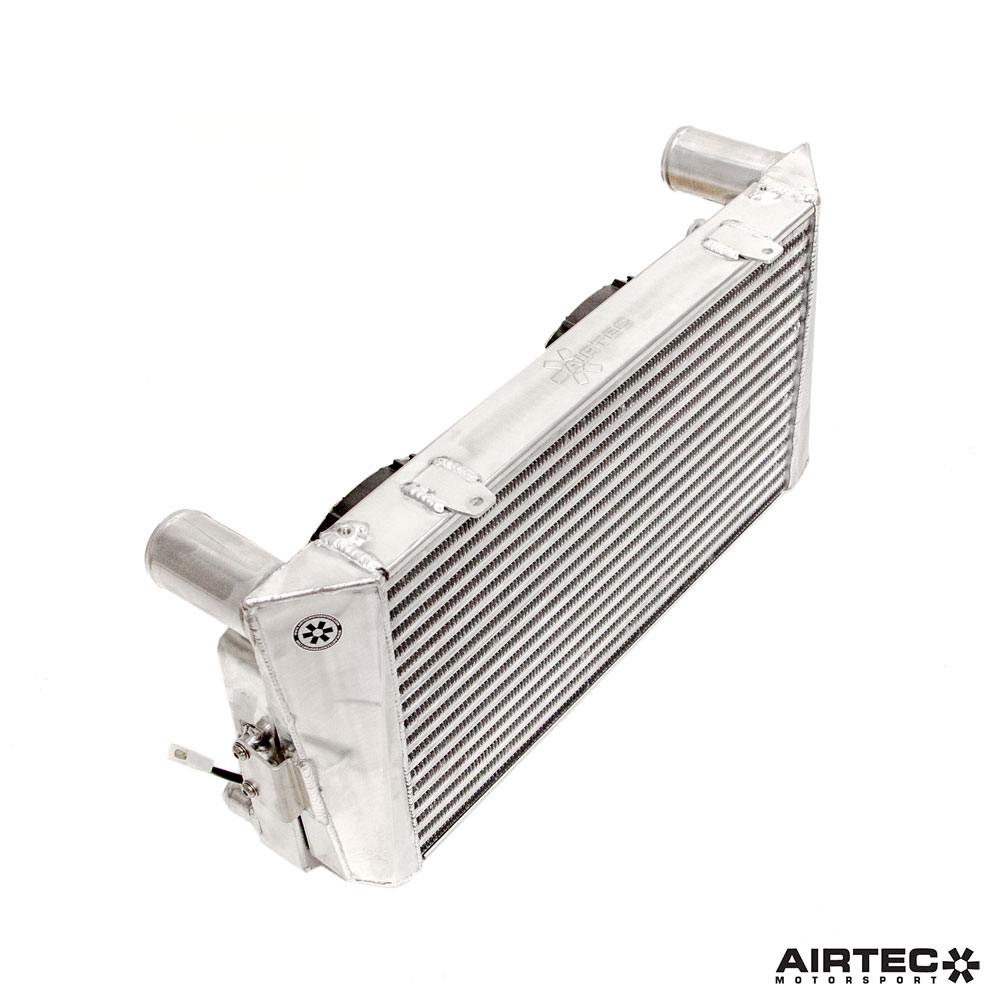

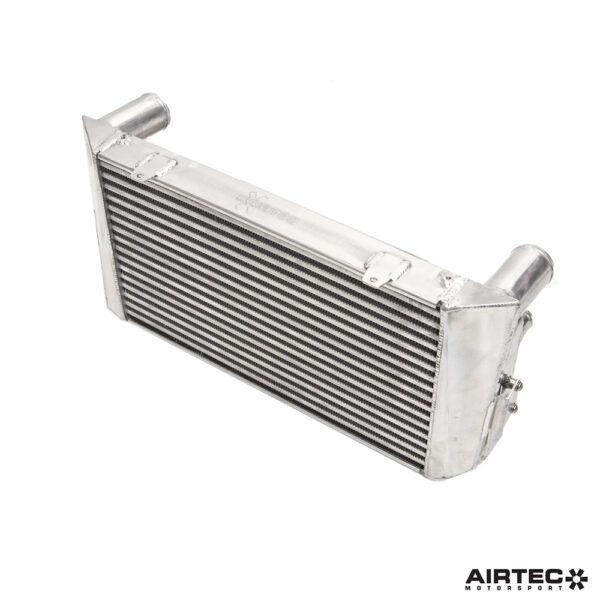

Intercooler
Width 690mm
Height 350mm
Depth 50mm
Pipe Diameter 60mm (outer diameter)
Radiator
Width: 696mm
Height: 264mm
Depth: 42mm
Pipe Diameter 34mm (outer diameter)
Please note: Some minor cutting is required to ensure a perfect fitment.
Registered Design Right number: Application Pending
AIRTEC part no: ATINTFO17
