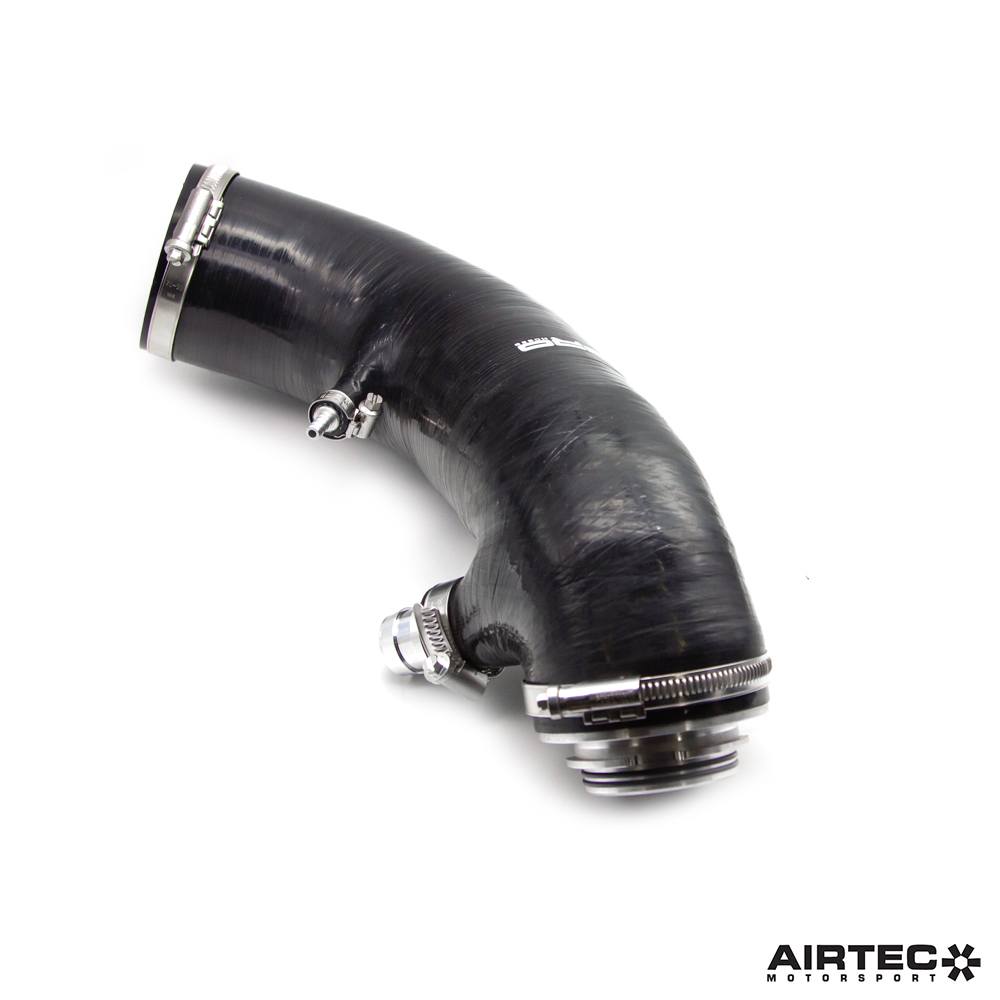

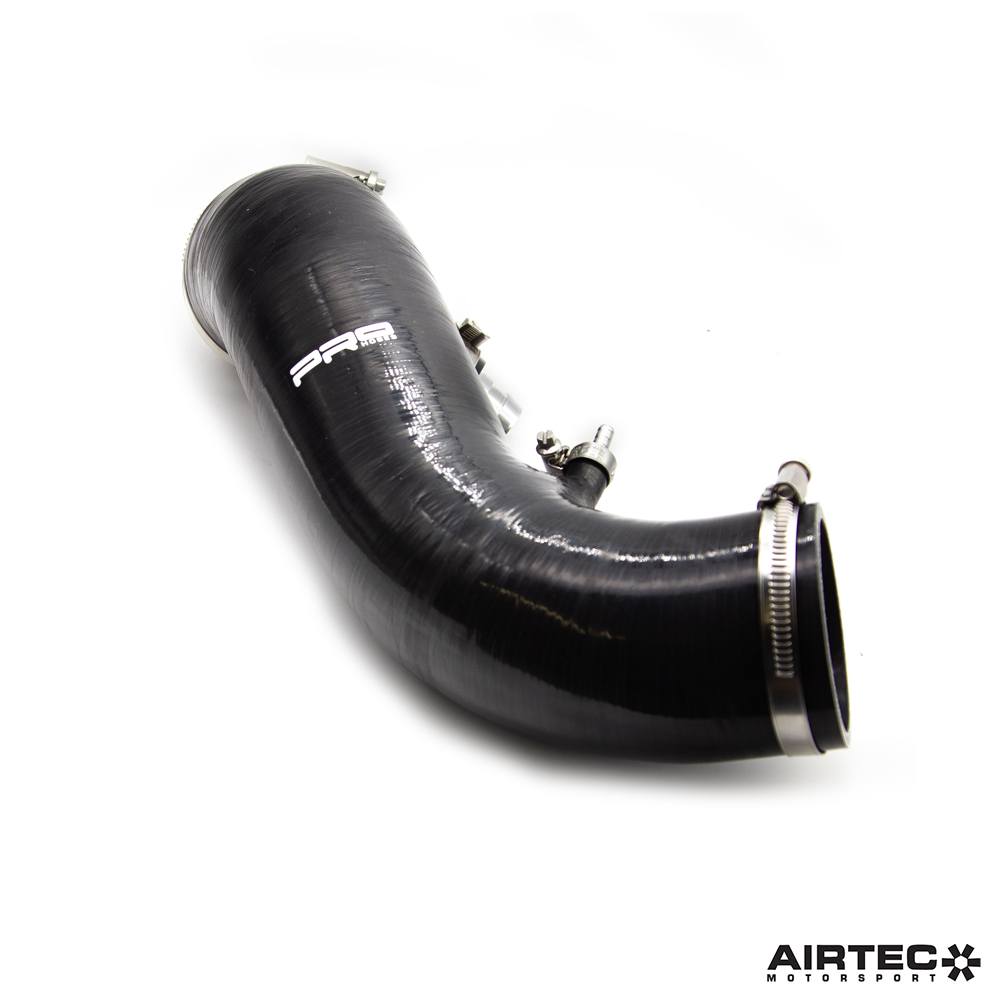

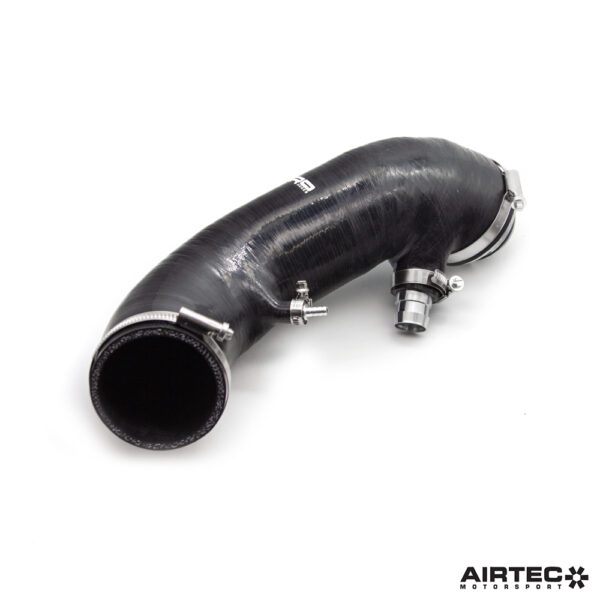

AIRTEC Motorsport Enlarged Turbo Elbow for Audi S1

Technical Data

As part of our expanding Audi product range, AIRTEC Motorsport is proud to launch our enlarged turbo inlet elbow upgrade for the S1 (8X) model, suitable for track or fast road use.

A direct replacement part that offers increases in performance and response, the enlarged turbo inlet elbow features a freer-flowing design with an increased internal diameter.

How it works
The original turbo inlet elbow is made from thin plastic with corrugated sections and tapers down to just 50mm diameter at its exit, which hugely limits flow and capacity. Our enlarged replacement hose is made from high-quality silicone, which features smooth internals and a 80mm diameter throughout, offering a 60% increase in comparison to the original hose’s narrowest point. The increased volume and improved design works to reduce restriction and improve flow to the turbo, providing an increase in throttle response.

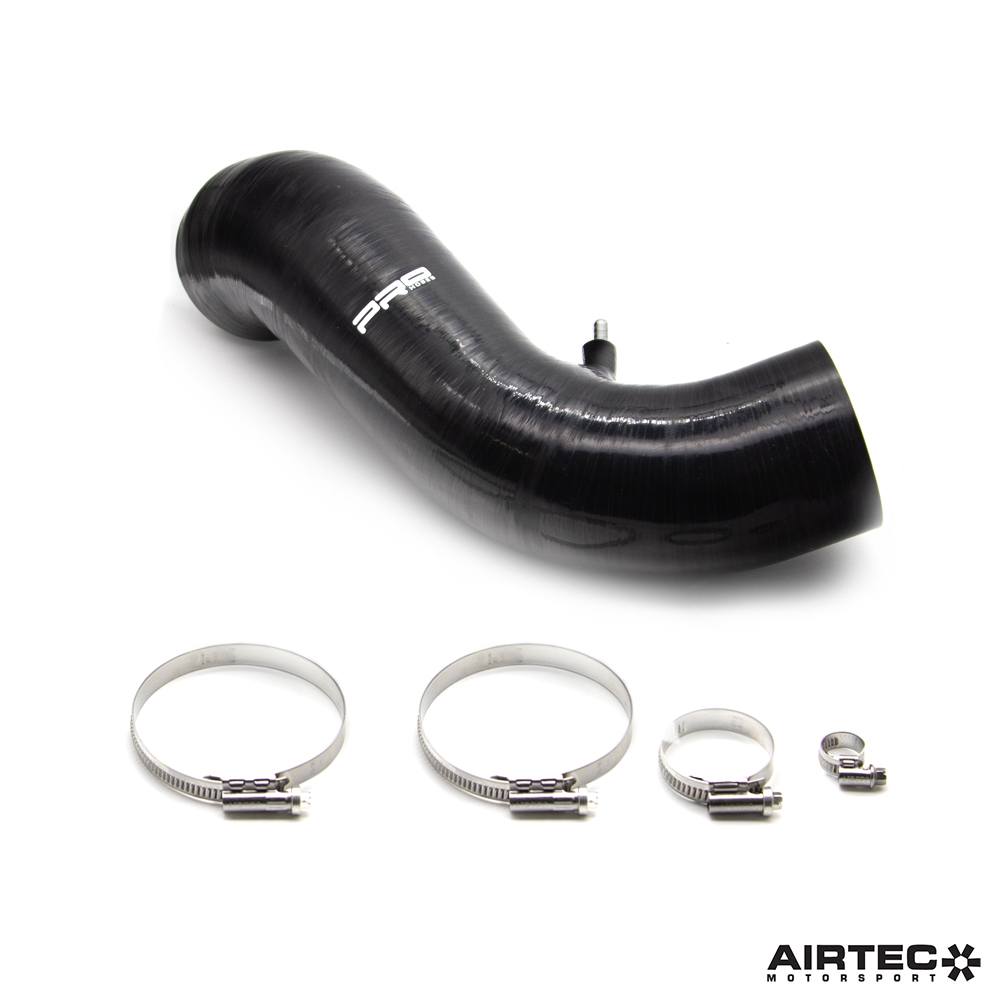

The elbow upgrade includes a CNC connector, all fittings, as well as detailed instructions.

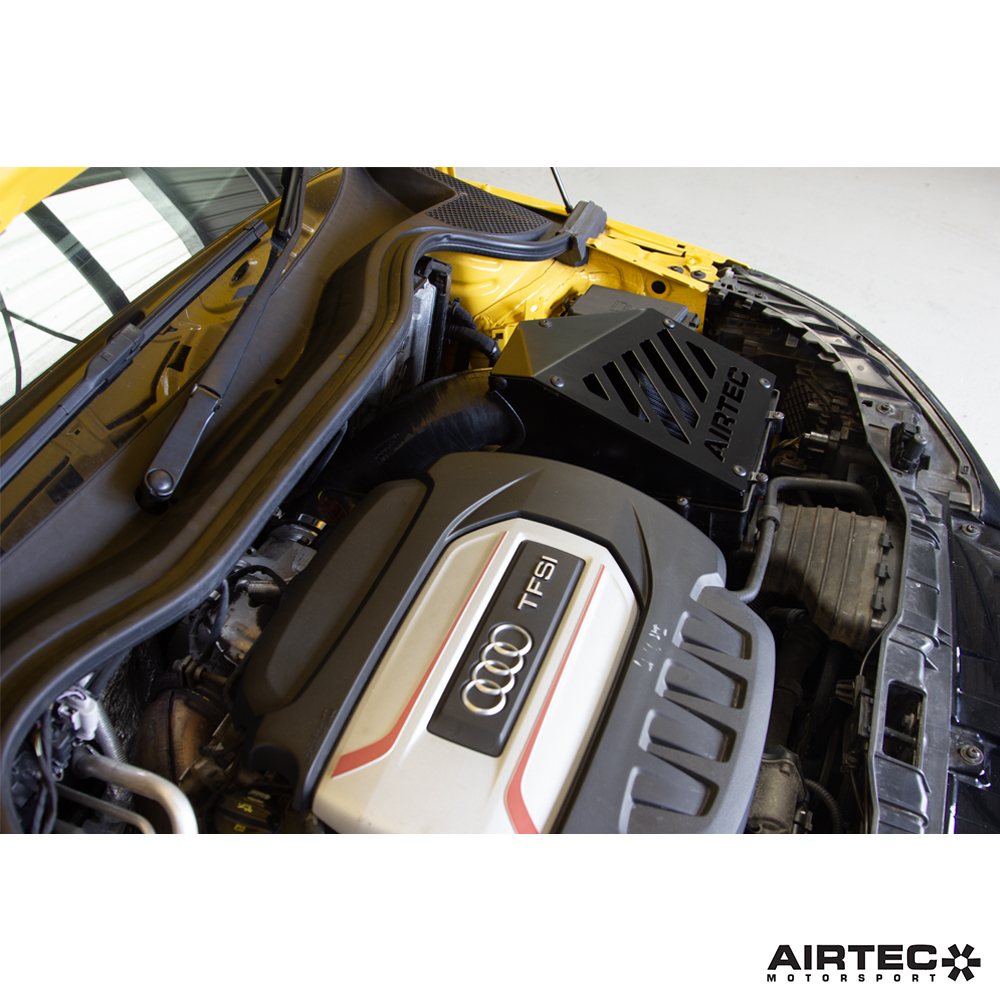

Please note: Will not fit with original air box – will only fit with our AIRTEC Motorsport induction kit.

Dimensions:
OEM Turbo Elbow:
Diameter: 50mm (at narrowest point)
Cross sectional area: 1,963.5mm² (at narrowest point)

AIRTEC Motorsport Turbo Elbow:
Diameter: 80mm
Cross sectional area: 5,027mm²

Features:

• 60% increase in diameter in comparison to narrowest points
• Smoother, freer-flowing design
• High-quality silicone construction
• Improves air flow to the turbo
• Increases throttle response
• Direct replacement fitment
• Includes all fixtures and fittings
• Features detailed fitting guide

AIRTEC Part No: ATIKVAG11
