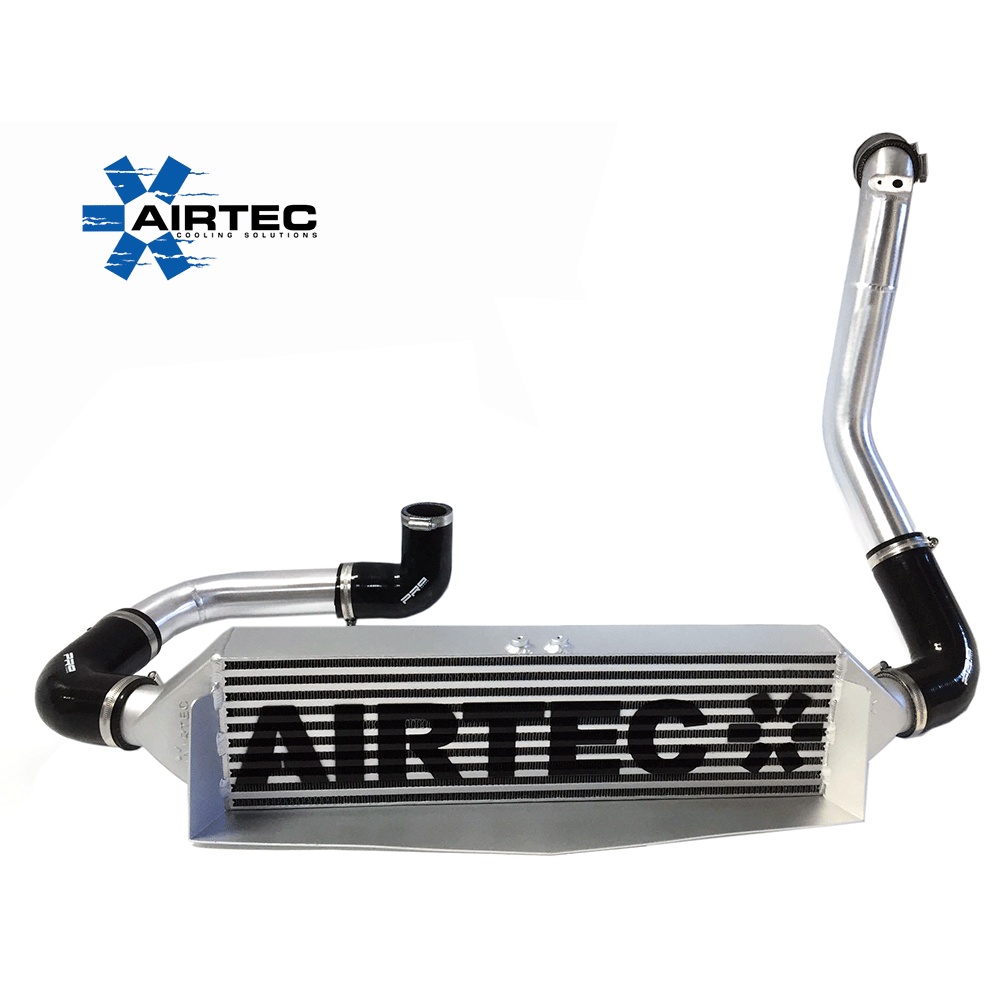

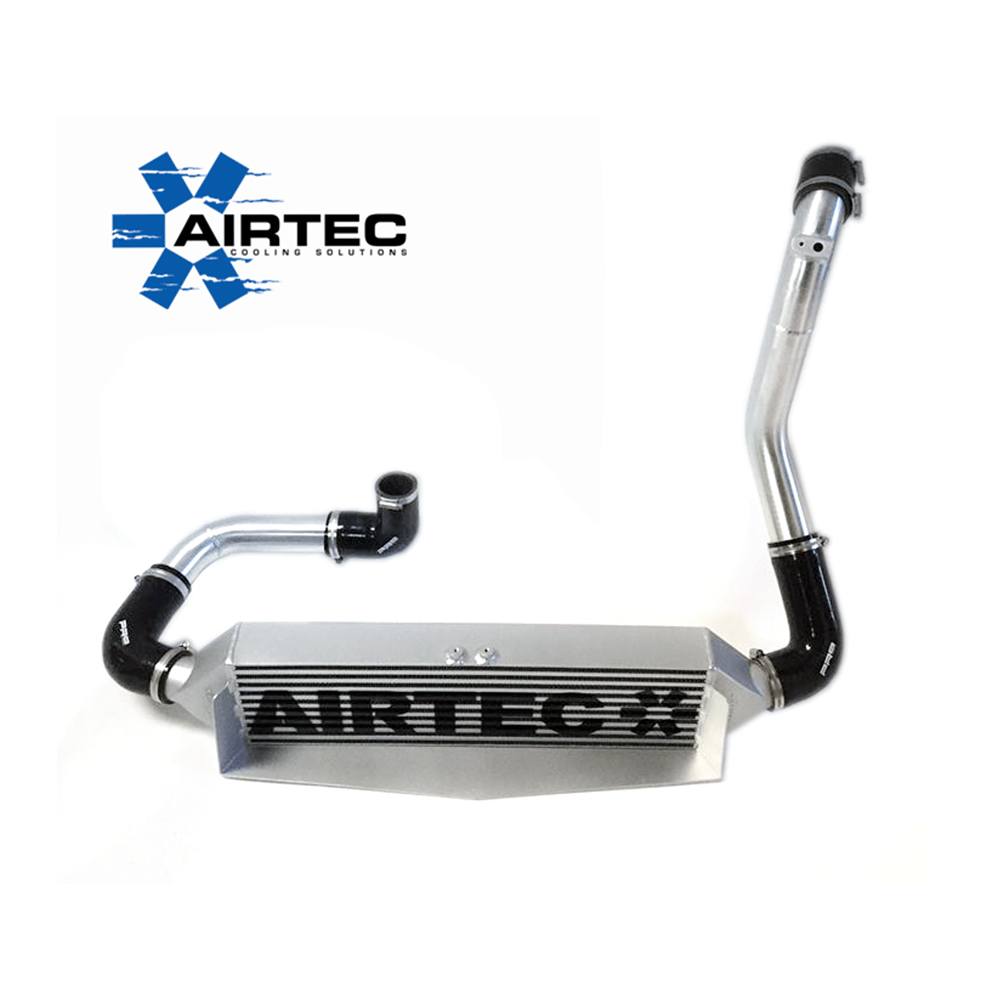

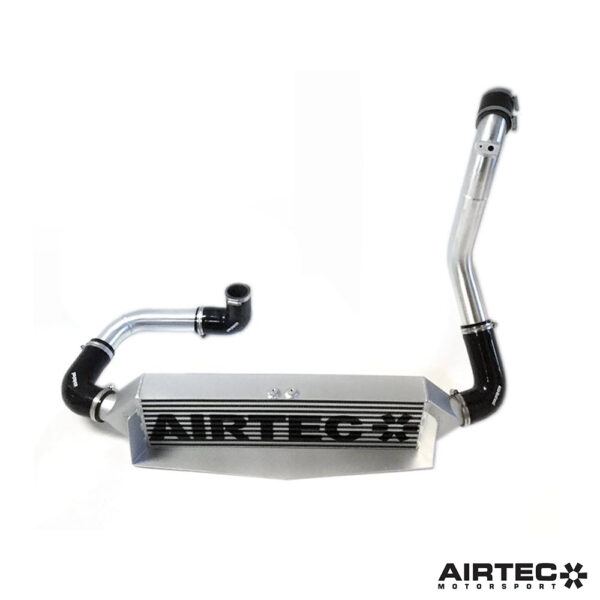

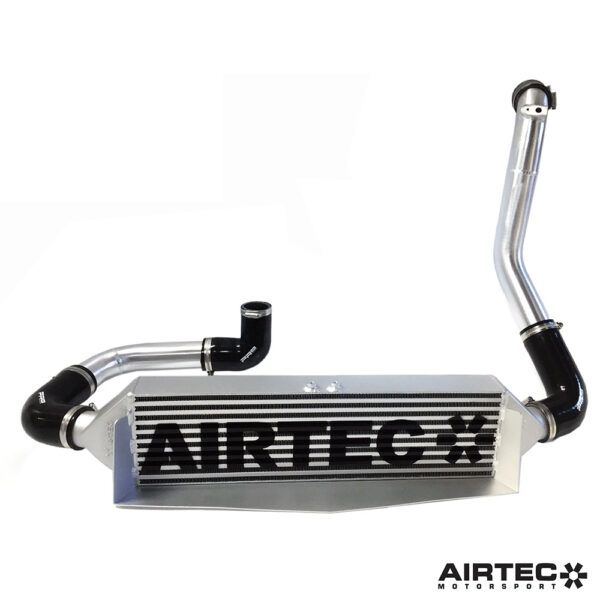

AIRTEC Motorsport Intercooler Upgrade for Vauxhall Astra J 1.6 GTC

Technical Data

As part of our expanding Vauxhall platform product range, AIRTEC Motorsport is proud to launch our intercooler kit for the Astra J 1.6 Turbo GTC, suitable for track or fast road use.

In order to ensure there is no noticeable loss in performance during extended periods of hard driving, we have developed a larger, freer-flowing intercooler that is a direct replacement for the smaller and more restrictive OEM item.

Our solution to increasing the intercooler’s size and performance within the confines of the limited space behind the bumper is based upon a core design that is wider, taller and deeper.

This offers a huge increase in overall capacity in comparison to the original intercooler, as well as a substantial increase in frontal area over standard, which allows it to make the most of the air flow provided.

Together with our high-flow, moulded one-piece cast end tanks and air guide to ensure flow is directed correctly and efficiently, the AIRTEC Motorsport intercooler offers much greater efficiency and volume over standard.

Available in a high quality powder coated black finish, the comprehensive kit is a direct replacement and comes with Pro Hoses silicone connectors, all fixtures and fittings, as well as detailed fitting instructions.

Its improved cooling efficiency and easy fitment makes it an essential modification for all modified Astra J 1.6 Turbo GTC models.

Dimensions:
Width: 740mm
Height: 170mm
Depth: 70mm
Capacity: 8.8 litres
Front Area: 1,258cm²

Features:

• Huge increase in capacity and frontal area
• Improved cooling ability
• Reduced charge temperatures
• High-flow, moulded one-piece cast end tanks
• Powder coated black finish
• All fittings and fixtures included
• Comes with detailed fitting guide

Registered Design Right number: 6030022

AIRTEC part no: ATINTVAUX6
