AIRTEC Motorsport Auxiliary Radiator for BMW Models (B58/B46)

Technical Data

As part of our expanding BMW platform product range, AIRTEC Motorsport is proud to launch our auxiliary radiator upgrade for the M140i, M240i, 340i and various other models for fast road or track use.

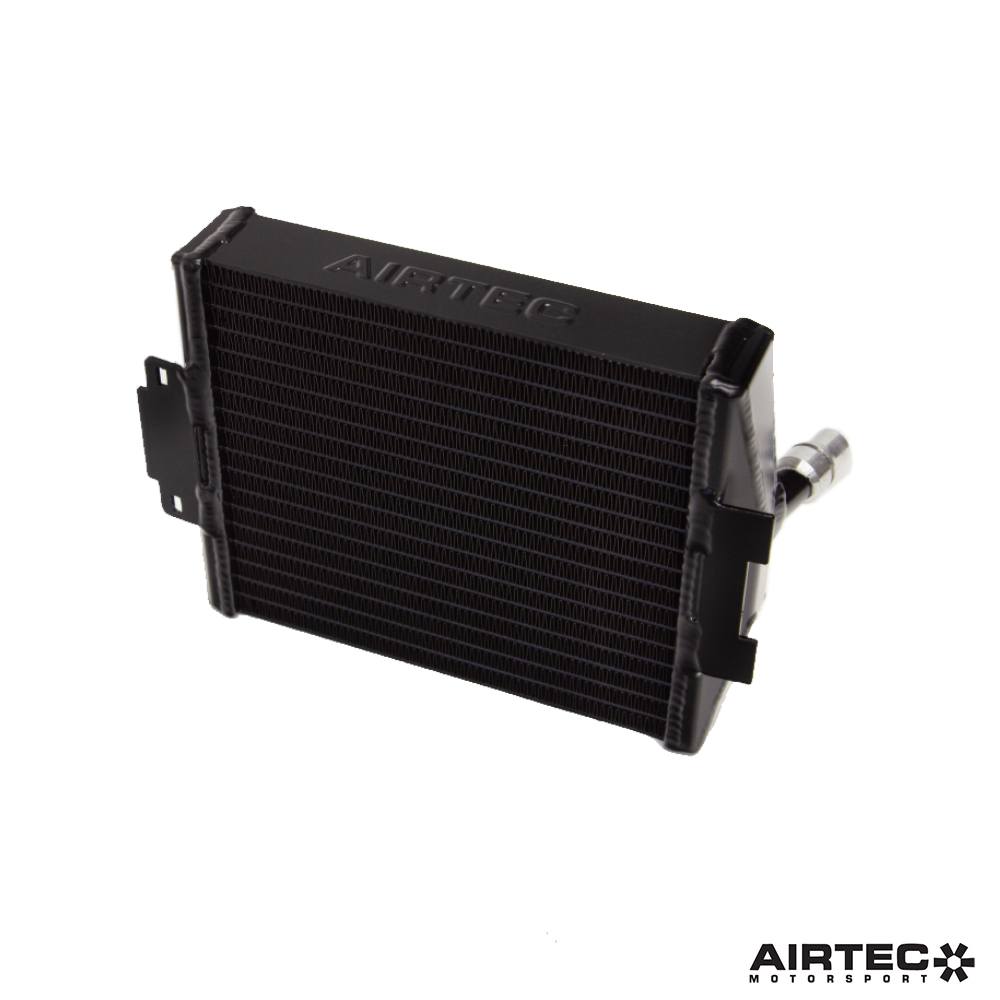

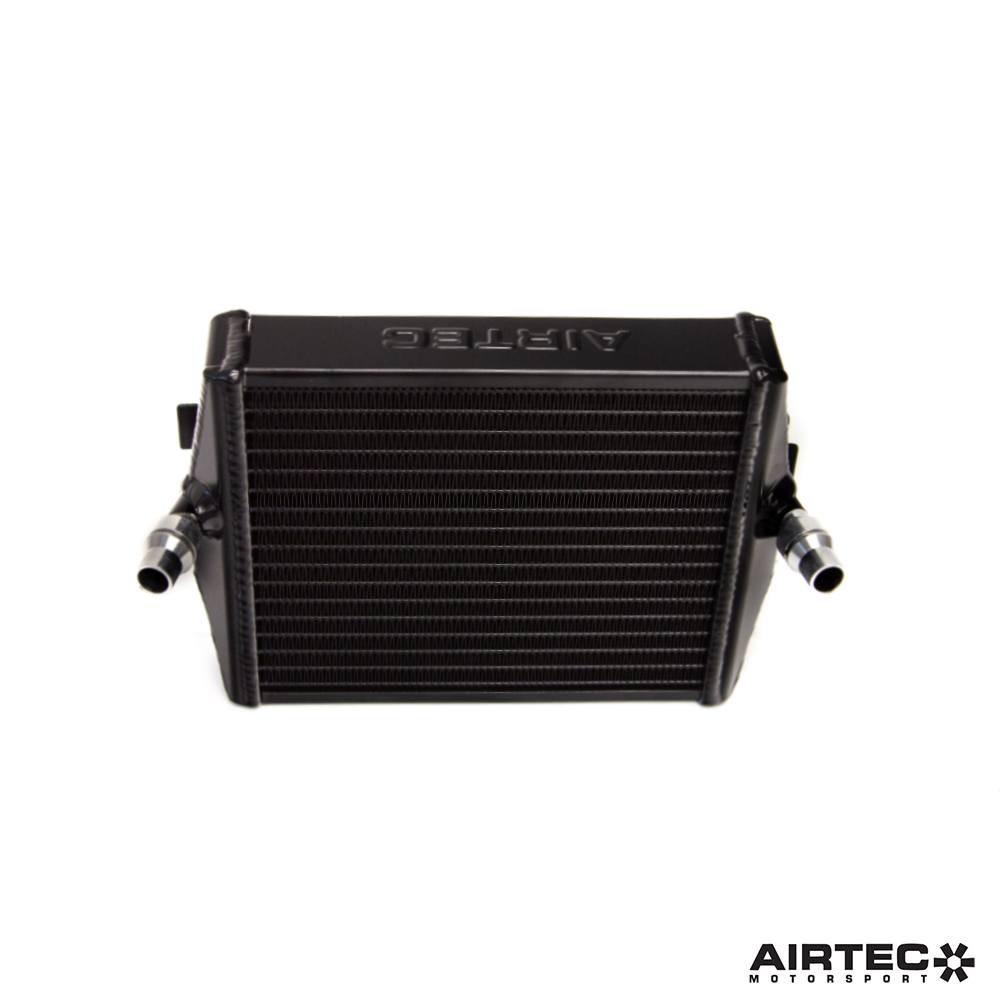

AIRTEC Motorsport’s solution to improving the original set up is utilise the available space behind the front bumper and develop a direct replacement radiator that’s wider, taller and thicker. This means capacity is increased by a 56% over standard, whilst frontal area is also increased to help cool the extra capacity.

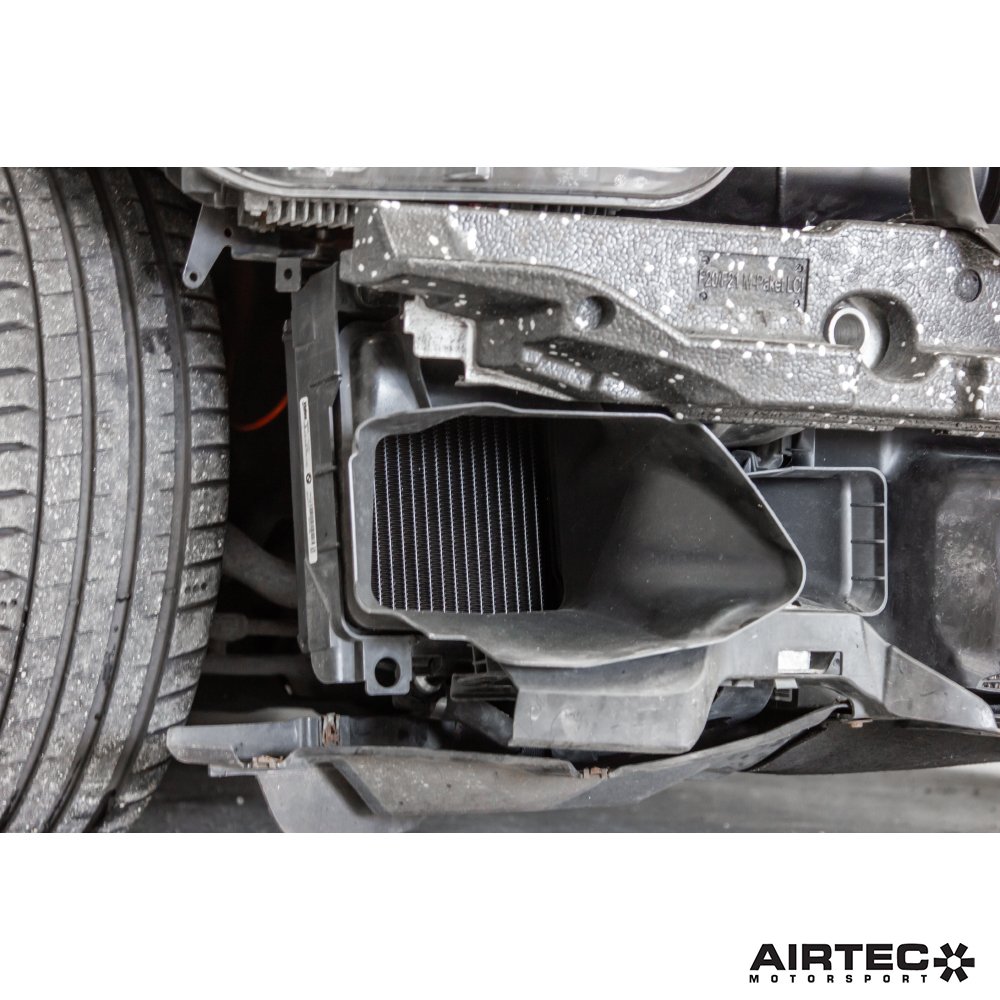

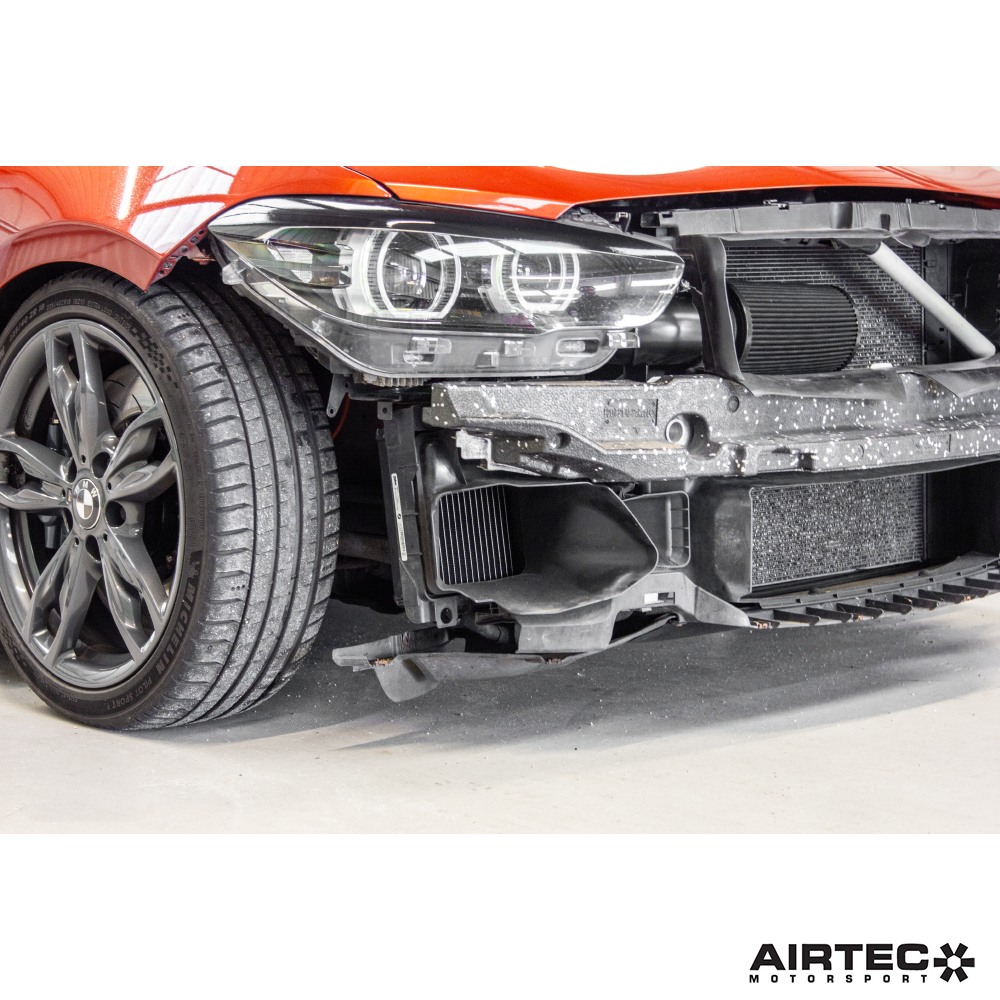

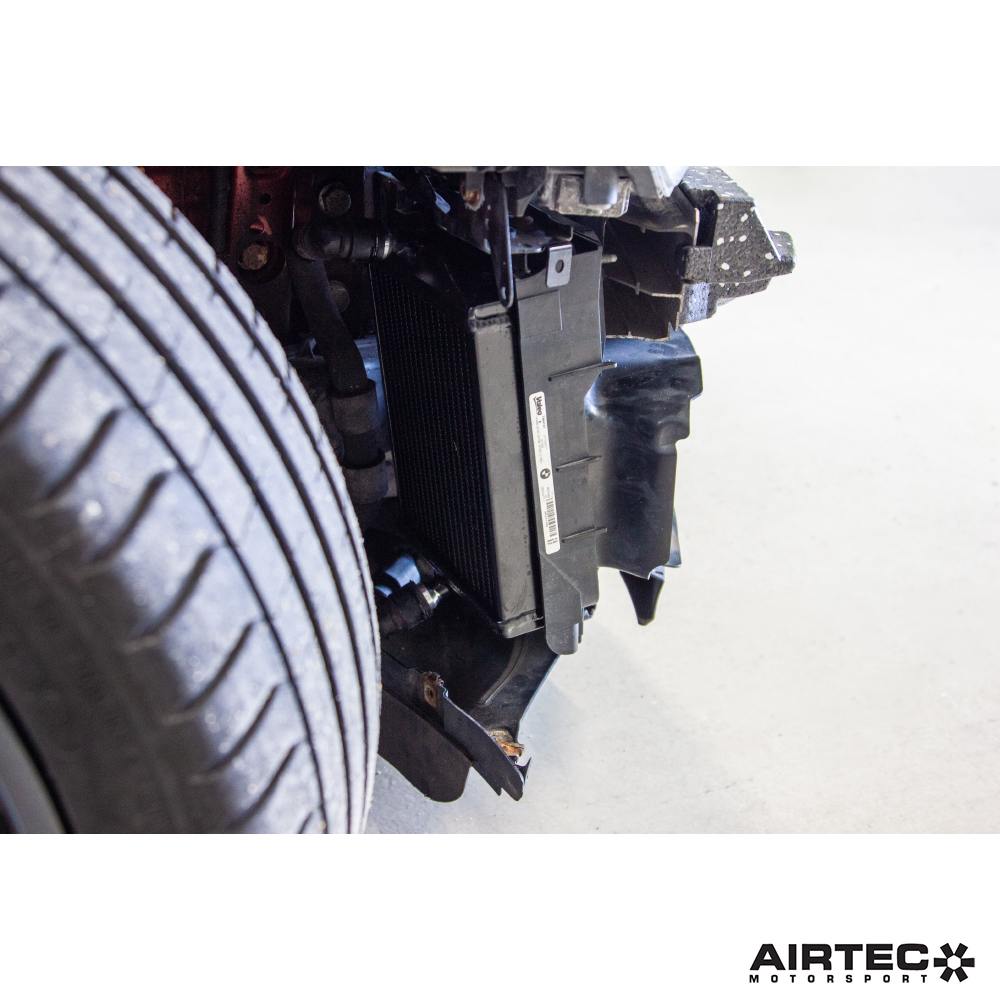

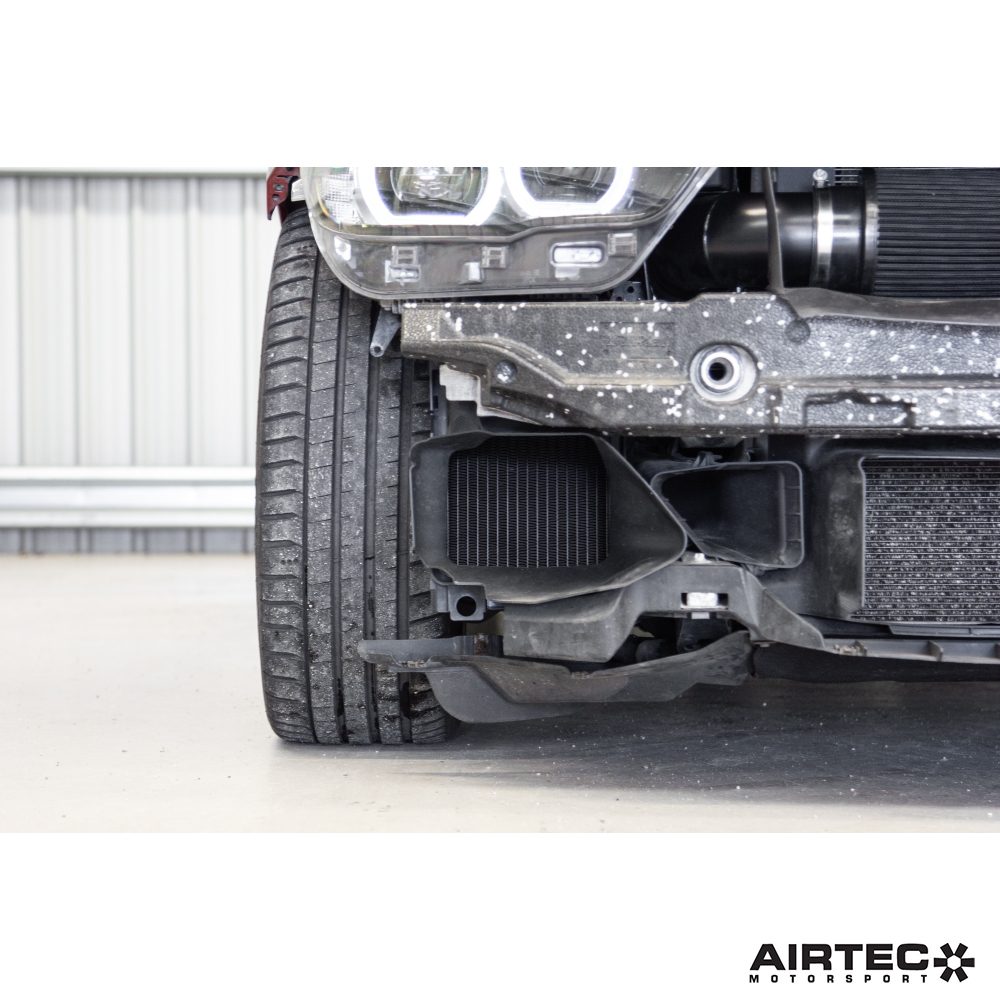

Despite the significant increases, the radiator fits neatly behind the bumper and requires no modifications to fit, using the OEM mounts and the original coolant connectors.

Finished in a high-quality powder-coated black finish, the fitting kit includes a detailed installation guide.

Dimensions:
OEM radiator:
Height: 195mm
Width: 180mm
Depth: 27mm
Volume: 0.95-litres
Frontal area: 351cm²

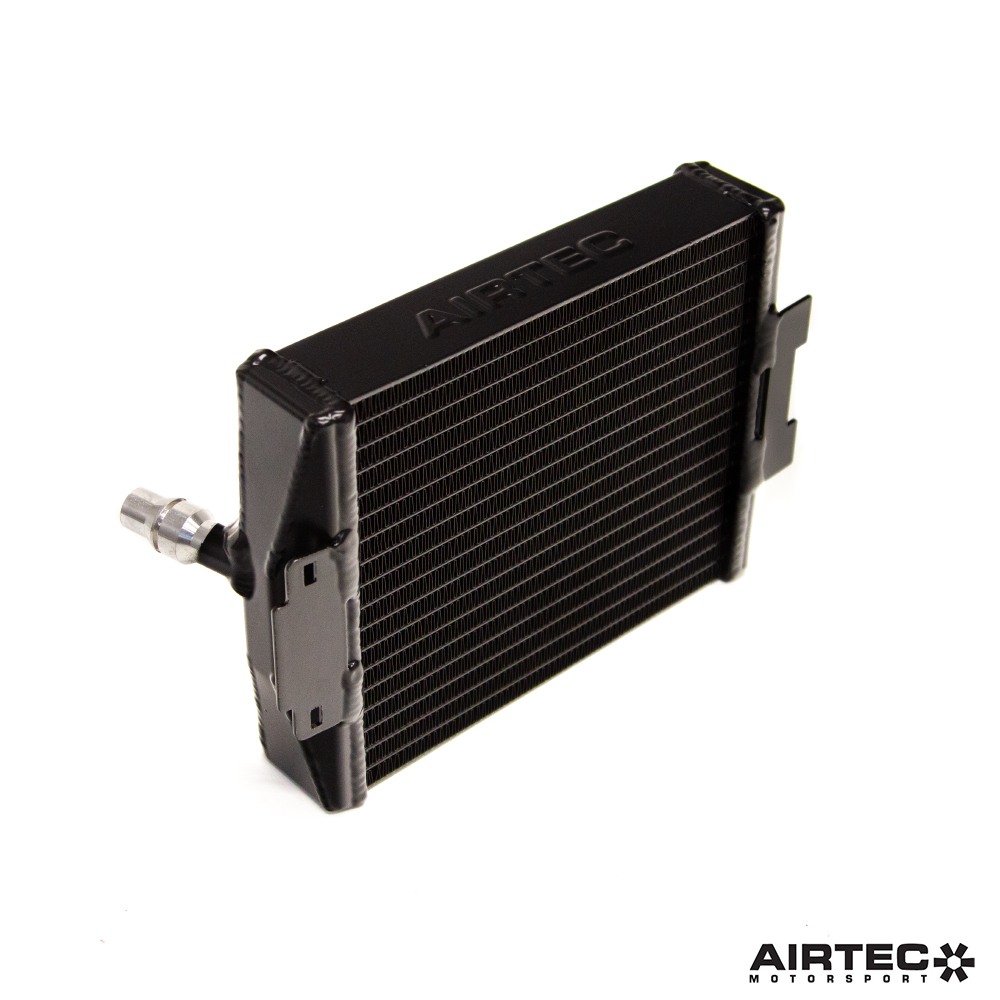

AIRTEC Motorsport radiator:
Height: 200mm
Width: 185mm
Depth: 40mm
Volume: 1.48-litres
Frontal area: 370cm²

Fitment:
Replaces BMW part number: 17118625447
1-Series:
M140i – F20 (B58)
M140i – F21 (B58)
M140iX – F20 (B58)
M140iX – F21 (B58)

2-Series:
M240i – F22 (B58)
M240iX – F22  (B58)
230i – F22 – (B46)
230iX – F22 – (B46)
M240i – F22 – (B58)
M240iX – F22 – (B58)
M2 – F87 – (N55)

3-Series:
340i – F30 (B58)
340iX – F30 (B58)
340i – F34 GT (B58)
340iX – F34 GT (B58)

4-Series:
430i – F32 (B46)
430iX – F32 (B46)
440i – F32 (B58)
440iX – F32 (B58)
430i – F32 (B46)
430iX – F32 (B46)
440i – F32 (B58)
440iX – F32 (B58)
430i – F36 Gran Coupé (B46)
430iX – F36 Gran Coupé (B46)
440i – F36 Gran Coupé (B58)

Features:

• 56% increase in capacity to the original
• Larger frontal surface area
• Offers improved cooling ability
• Fits huge range of BMW models
• Direct fit with no cutting or trimming
• Finished in durable black powder coat
• Comprehensive fitting guide

AIRTEC part no: ATMSBMW37
